VTK提供了vtkClip相关的类来实现网格模型分割,其中vtkClipDataSet使用用户定义的隐函数或者point的标量数据来切割任意类型的网格模型,vtkClipVolume使用隐函数或者point的标量数据来切割volume类型数据,vtkClipPolyData使用隐函数或者point的标量数据来切割vtkPolyData类型的网格数据。
隐函数通过vtkImplicitFunction的子类来定义,vtkImplicitFunction类提供了两个重要的虚函数,一个是计算给定坐标位置函数值的EvaluateFunction函数,另一个是计算给定坐标位置梯度向量的EvaluateGradient函数,这两个虚函数需要在子类中准确定义。VTK提供了许多可以直接使用的隐函数类,经常使用到的包括包括平面函数vtkPlane(函数值是对应外置坐标到平面的距离,外侧为正值,内侧为负值),球面函数vtkSphere,圆锥面函数vtkCone,圆柱面函数vtkCylinder,长方体函数vtkBox,通用二次曲面函数vtkQuadric。此外,用户还可以使用vtkImplicitBoolean通过集合运算(求交、并、取反)将简单函数进行组合,从而得到各种更加复杂的函数。
如何使用隐函数来执行切割运算,vtkClip切割算法的首先根据隐函数求得每个节点处隐函数的函数值,并将其作为point的scalar值(如何没有设定隐函数则直接使用该point的scalar值),如果一个cell每个point的scalar值均小于vtkClip算法设定的value值(默认为0),则该cell完全在应该被切割的一侧,反之在应该保留的一侧。
如果一个cell的某条edge的两个端点scalar值一个大于value,而另一个小于value,则在该edge上通过插值算法找出等于value值的位置,使用这些点所在的平面形成针对该cell的切割平面,调用对应类型vtkCell3D类的clip函数完成该cell的切割。
vtkClip算法默认只保留scalar值大于value的一侧,也可以调用GenerateClippedOutputOn函数使其保留被切割的一侧,被切割一侧的结果可以使用GetClippedOutput函数得到。
下面是使用vtkClipDataSet实现网格模型平面和长方体组合切割的示例代码:
vtkSmartPointer<vtkImageData> imgData = vtkSmartPointer<vtkImageData>::New(); imgData->SetDimensions(15, 15, 15); imgData->SetSpacing(1.0, 1.0, 1.0); imgData->SetOrigin(0.0, 0.0, 0.0); vtkSmartPointer<vtkFloatArray> xCoordes = vtkSmartPointer<vtkFloatArray>::New(); xCoordes->SetNumberOfComponents(1); for(int i=0; i<15; ++i) xCoordes->InsertNextTuple1(i); vtkSmartPointer<vtkFloatArray> yCoordes = vtkSmartPointer<vtkFloatArray>::New(); yCoordes->SetNumberOfComponents(1); for(int i=0; i<15; ++i) yCoordes->InsertNextTuple1(i); vtkSmartPointer<vtkFloatArray> zCoordes = vtkSmartPointer<vtkFloatArray>::New(); zCoordes->SetNumberOfComponents(1); for(int i=0; i<15; ++i){ if(i%2) zCoordes->InsertNextTuple1(i); else zCoordes->InsertNextTuple1(i+0.25); } //使用线性网格 vtkSmartPointer<vtkRectilinearGrid> recGrid = vtkSmartPointer<vtkRectilinearGrid>::New(); recGrid->SetDimensions(xCoordes->GetNumberOfTuples(), yCoordes->GetNumberOfTuples(), zCoordes->GetNumberOfTuples()); recGrid->SetXCoordinates(xCoordes); recGrid->SetYCoordinates(yCoordes); recGrid->SetZCoordinates(zCoordes); //CELL数据 vtkSmartPointer<vtkIntArray> cellDataArray = vtkSmartPointer<vtkIntArray>::New(); cellDataArray->SetName("cell_scalar"); for(int i=0; i<imgData->GetNumberOfCells(); ++i){ cellDataArray->InsertNextTuple1(i); } imgData->GetCellData()->SetScalars(cellDataArray); recGrid->GetCellData()->SetScalars(cellDataArray); //Point数据 vtkSmartPointer<vtkIntArray> pointDataArray = vtkSmartPointer<vtkIntArray>::New(); pointDataArray->SetName("point_scalar"); for(int i=0; i<imgData->GetNumberOfPoints(); ++i){ pointDataArray->InsertNextTuple1(i); } imgData->GetPointData()->SetScalars(pointDataArray); recGrid->GetPointData()->SetScalars(pointDataArray); //切割平面 vtkSmartPointer<vtkPlane> planeYOZ = vtkSmartPointer<vtkPlane>::New(); planeYOZ->SetOrigin(7.5, 7.5, 7.5); planeYOZ->SetNormal(1.0, 0.0, 0.0); vtkSmartPointer<vtkPlane> planeXOZ = vtkSmartPointer<vtkPlane>::New(); planeXOZ->SetOrigin(7.5, 7.5, 7.5); planeXOZ->SetNormal(0.0, 1.0, 0.0); vtkSmartPointer<vtkGeometryFilter> imgGeoFilter = vtkSmartPointer<vtkGeometryFilter>::New(); imgGeoFilter->SetInputData(imgData); imgGeoFilter->Update(); vtkSmartPointer<vtkClipDataSet> clipYOZ = vtkSmartPointer<vtkClipDataSet>::New(); clipYOZ->SetInputData(recGrid); clipYOZ->SetClipFunction(planeYOZ); clipYOZ->GenerateClippedOutputOn(); clipYOZ->Update(); vtkSmartPointer<vtkAppendFilter> appendFilter1 = vtkSmartPointer<vtkAppendFilter>::New(); appendFilter1->AddInputConnection(clipYOZ->GetOutputPort()); appendFilter1->AddInputData(clipYOZ->GetClippedOutput()); appendFilter1->Update(); vtkSmartPointer<vtkClipDataSet> clipXOZ = vtkSmartPointer<vtkClipDataSet>::New(); clipXOZ->SetInputData(appendFilter1->GetOutput()); clipXOZ->SetClipFunction(planeXOZ); clipXOZ->GenerateClippedOutputOn(); clipXOZ->Update(); vtkSmartPointer<vtkAppendFilter> appendFilter2 = vtkSmartPointer<vtkAppendFilter>::New(); appendFilter2->AddInputConnection(clipXOZ->GetOutputPort()); appendFilter2->AddInputData(clipXOZ->GetClippedOutput()); appendFilter2->Update(); //开始造型切割 vtkSmartPointer<vtkBox> box1 = vtkSmartPointer<vtkBox>::New(); box1->SetBounds(-5.0, 7.5, -5.0, 7.5, -5.0, 16.0); //切割 vtkSmartPointer<vtkClipDataSet> clipper1 = vtkSmartPointer<vtkClipDataSet>::New(); clipper1->SetInputConnection(appendFilter2->GetOutputPort()); clipper1->SetClipFunction(box1); //第二轮切割 vtkSmartPointer<vtkBox> box2 = vtkSmartPointer<vtkBox>::New(); box2->SetBounds(-5.0, 7.5, -5.0, 7.5, 5.0, 16.0); vtkSmartPointer<vtkTransform> trans = vtkSmartPointer<vtkTransform>::New(); trans->Translate(7.5, 7.5, 0.0); trans->RotateZ(-45); trans->Translate(-7.5, -7.5, 0.0); box2->SetTransform(trans); //切割 vtkSmartPointer<vtkClipDataSet> clipper2 = vtkSmartPointer<vtkClipDataSet>::New(); clipper2->SetInputConnection(clipper1->GetOutputPort()); clipper2->SetClipFunction(box2); //第三轮切割 vtkSmartPointer<vtkBox> box3 = vtkSmartPointer<vtkBox>::New(); box3->SetBounds(7.5, 15.0, -5.0, 7.5, 10.0, 16.0); //切割 vtkSmartPointer<vtkClipDataSet> clipper3 = vtkSmartPointer<vtkClipDataSet>::New(); clipper3->SetInputConnection(clipper2->GetOutputPort()); clipper3->SetClipFunction(box3); //保存到文件中 vtkSmartPointer<vtkXMLUnstructuredGridWriter> writer = vtkSmartPointer<vtkXMLUnstructuredGridWriter>::New(); writer->SetFileName("D:/VTKTestData/clipper.vtu"); writer->SetInputConnection(clipper1->GetOutputPort()); writer->Update(); vtkSmartPointer<vtkDataSetMapper> mapper = vtkSmartPointer<vtkDataSetMapper>::New(); mapper->AddInputConnection(clipper1->GetOutputPort()); vtkSmartPointer<vtkActor> actor = vtkSmartPointer<vtkActor>::New(); actor->SetMapper(mapper); actor->GetProperty()->EdgeVisibilityOn();

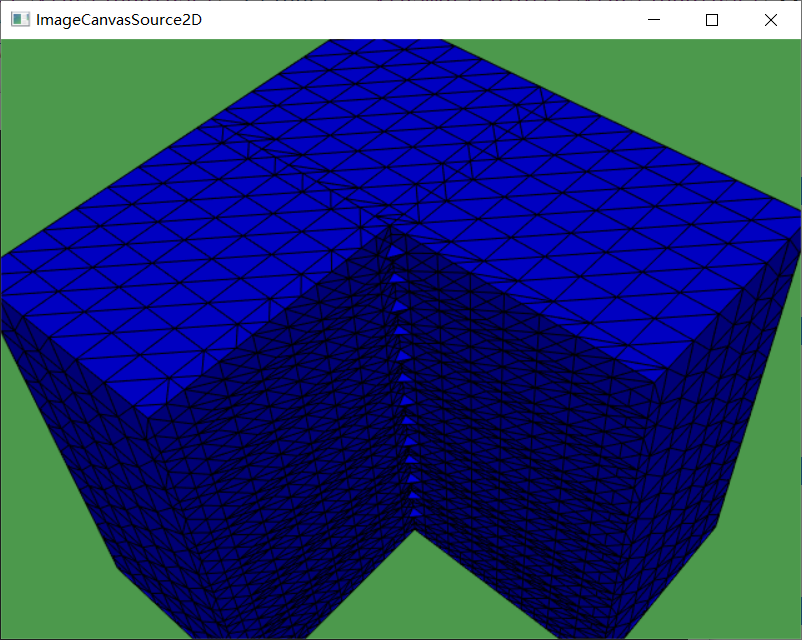

最终实现的效果如下:
