CAA开发创建Addin(菜单)程序的详细步骤

2014-08-05 19:25:18|?次阅读|上传:huigezrx【已有?条评论】发表评论

关键词:C/C++, CAA, CATIA|来源:唯设编程网

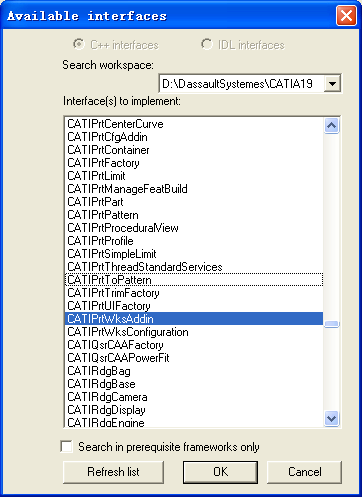

在Serach workspace栏选择CATIA的安装路径,在下方的Interface(s) to implement栏选择CATIPrtWksAddin:

CAA开发创建Addin程序的详细步骤

不要勾选下方的Search in prerequisite frameworks only!

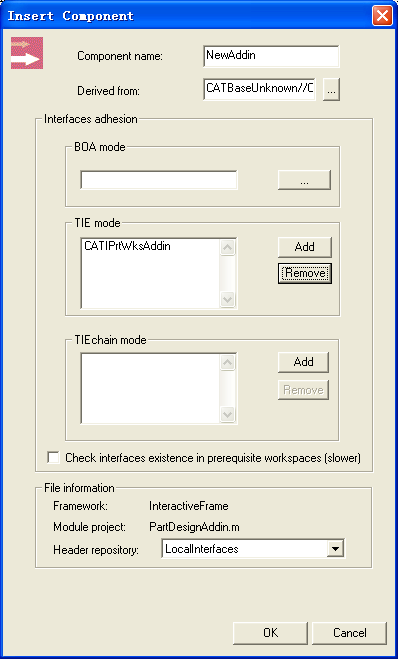

设置完成的状态如下图:

CAA开发创建Addin程序的详细步骤

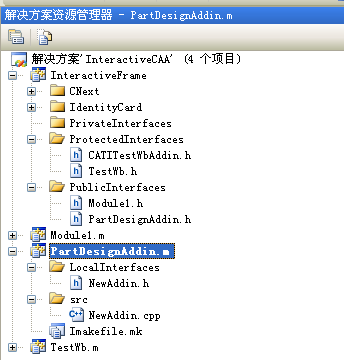

点击OK。解决方案的目录结构如下:

CAA开发创建Addin程序的详细步骤

如果现在进行编译(mkmk),会提示如下错误:

CAA开发创建Addin程序的详细步骤

4. 添加CreateCommands和CreateToolbars方法

1).      NewAddin.h头文件

 “NewAddin.h”头文件最终完成如下:

// COPYRIGHT Dassault Systemes 2013

//===================================================================

//

// NewAddin.h

// Provide implementation to interface

//    CATIPrtWksAddin



//

//===================================================================

//

// Usage notes:

//

//===================================================================

//CAA2 Wizard Generation Report

//IMPLEMENTATION

//    TIE: CATIPrtWksAddin



//End CAA2 Wizard Generation Report

//

//  Apr 2013  Creation: Code generated by the CAA wizard  Administrator

//===================================================================

#ifndef NewAddin_H

#define NewAddin_H



#include "CATBaseUnknown.h"

#include "CATCmdContainer.h"



//-----------------------------------------------------------------------



/**

* Class representing xxx.

*

* <br><b>Role</b>: Provide the basic class function...

* <p>

* It implements the interfaces :

*  <ol>

*  <li>@href CATIPrtWksAddin

*  </ol>

*

* @href ClassReference, Class#MethodReference, #InternalMethod...

*/

class NewAddin: public CATBaseUnknown



{

  CATDeclareClass;
  public:

  // Standard constructors and destructors for an implementation class

  // -----------------------------------------------------------------

     NewAddin ();

     virtual ~NewAddin ();

     void CreateCommands();

     CATCmdContainer * CreateToolbars();


  private:

  // The copy constructor and the equal operator must not be implemented

  // -------------------------------------------------------------------

  NewAddin (NewAddin &);

  NewAddin& operator=(NewAddin&);

};

//-----------------------------------------------------------------------

#endif
